Welded H-beam due to its anti-bending, the construction is simple and low cost, light weight structure etc,
Raw material: Q235B or Q345B
Technique: welded
Width: 200-700mm
height: 200-1200mm
Web plate thickness: 6-32mm
Wing plate thickness:6-40mm
Length: 4000-15000mm
Welded H-beam due to its anti-bending, the construction is simple and low cost, light weight structure etc, and is widely used in industrial production, civil buildings, bridges, electrified railway electricity bracket of railway and other building projects, due to its adavantages in bending ability, simple contruction, low cost and light weight.
With a great technical strenght and advanced equipments, we have been undertaking several kinds of design and manufacture of uniform and variable cross-section H beams.
Technical Parameters
|
Item Name
|
steel structures workshop
|
|
Main Material
|
Q235/Q345 Welded H Beam and Hot Rolled Section Steel
|
|
Surface
|
Painted or Hot Dip Galvanized
|
|
Roof & Wall Panel
|
EPS Sandwich panel /Single Corrugated Steel Sheet/ Colour sheet with Glass-wool, for customers choose
|
|
Window
|
PVC Steel or Aluminum Alloy
|
|
Door
|
Sliding Door or Rolling Up Door
|
|
Service
|
Design, Fabrication and Installation
|
|
We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation.
|
|
Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc
|
|
Packing
|
According to customer's requirement
|
|
Load into 40/20GP,40HQ or 40OT
|
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
Company Information:
* Product scope:
steel structure warehouse/workshop/hangar/garage/poultry house, container house, prefabricated home,sandwich panel, welded H steel,C/Z channel,corrugated steel sheet,etc.
* Products&Service Scope:
Design&Engineering Service, Steel Building,Space Frames, Portable Cabins, Tubular Steel Structures,basic building elements(built-up welded H-section , hot-rolled H-section, channel, steel column, steel beam),standard frames, secondary framing, roof & wall materials, Tempcon (sandwich) panels
* Engineering Design Software:
AutoCAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc
* Certificate:
ISO9001:2008, BV Certification and SGS Certification
Oversea projects we undertook in the last few years:
Industrial Workshop (8000 M2 )—Argentina
Workshop and storage warehouse (6000M2)---- Republic of Uzbekistan
steel Market(3000M2)---- Mauritius
steel shed (4500M2)---USA
poutry house(3000M2)—Austrilia
Aircraft Hangar(1300M2)------Austrilia
Warehouse(1000M2)---- Mongolia
Steel hall (7800m2) ---- Germany
Steel School(540m2)---- Paraguay
Steel warehouse (300m2)---- Thiland.
Thanks for your patient watching, Coopertaion with you will be our honor!
Thanks for your patient watching, Coopertaion with you will be our honor!
|
|

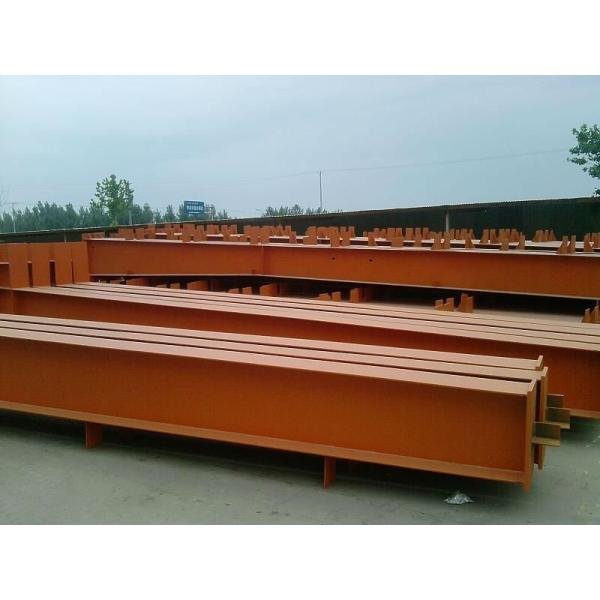

Steel Structure Welded H beam Images
|
